HBP 160 – Consistent multipacks, consistent quality.

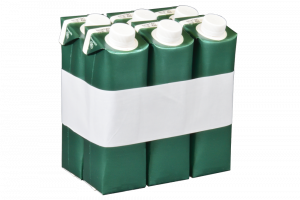

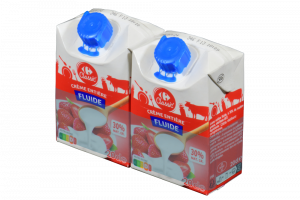

Our horizontal bundle packer transforms individual products into reliably packaged multipacks. With precise tape application, flexible format adjustment, and seamless line integration, it sets new standards in automated bundle packaging. Single-sided or double-sided perforation allows for easy separation of the products.

• Speed: up to 160 cycles per minute

• Machine efficiency: at least 98%

• Flexibility in roll procurement: both cross-wound rolls and flat rolls can be processed; in the latter case, a roll magazine is used

• Energy consumption reduced by up to 90%

• Extremely small footprint

• Increased process safety: No shrink tunnel, so no risk of burns

• Maximum flexibility: Tapes can be made of plastic, paper, or both

• Custom design of the tapes is possible using printed labels

Your benefits at a glance:

MAXIMUM FLEXIBILITY

Adjustable side guides allow for easy adaptation to different product formats and dimensions—without the need for time-consuming conversion.

REPEATABLE CONNECTION QUALITY

Uniform contact pressure ensures a permanently strong and consistent bond—batch after batch.

SEAMLESS TAPE INTEGRATION

The machine can be seamlessly and efficiently integrated into existing packaging or production lines.

GENTLE PROCESSING

Thanks to controlled securing during horizontal transport, surfaces and products are reliably protected from damage.

PRECISE TAPE APPLICATION

Self-adhesive PP or paper tapes are applied precisely and in the correct position using side-mounted dispensers.

Precisely bundled.
Reliably connected.

1. Feeding

2. Grouping

3. Tape application

4. Tape feeder

DOUBLE-TRACK FEED

The products are fed upright to the machine via a dual-lane conveyor system.

PRECISE GROUPING

In the grouping unit, the products are collected on a conveyor belt via a separation mechanism and synchronized according to the predefined container format. They are then transferred to the V-belt conveyor either alternately or simultaneously. This conveyor brings the separated products together and precisely aligns them for the next process step.

SYNCHRONOUS TAPE FEED

Tape dispensers mounted on the sides feed the adhesive tape synchronously to the sides of the products. Pressure rollers press the tape evenly against the contact surfaces, ensuring that the products are securely bonded together.
