ATL – Automated feeding. Reliable transfer.

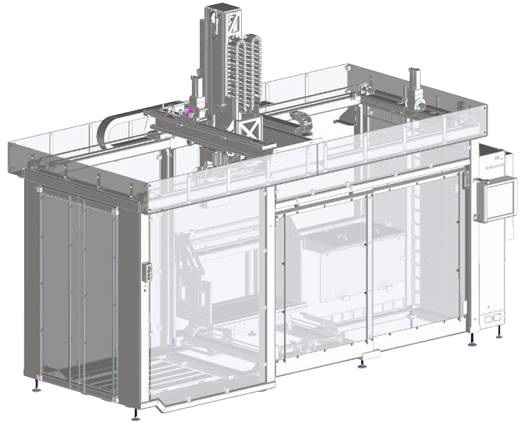

From pallet feeding to synchronized magazine loading: Our tray depalletizer automatically removes blanks layer by layer from the pallet stack, aligns them precisely using sensors, and transfers them in a controlled manner to the tray magazine of the downstream machine.
• Capacity up to 150 trays per minute (2 mm); 100 trays per minute (3 mm)
• Machine efficiency of up to 98%
• Pallet change: 3 minutes, depending on the cut size
• Smallest possible footprint
• A variety of trays can be processed
• Automation of the packaging process
• Operators can take on more challenging tasks, such as those in the area of quality assurance
Your benefits at a glance:
SHAPE-SPECIFIC PALLET HANDLING
Pallets of cut sheets are processed within the specified size and weight range.
CONTINUOUS MAGAZINE LOADING
The magazines of the HTW and HTA are loaded fully automatically and continuously—without any manual intervention.
RELIABLE PROCESS DELIVERY
The cut pieces are collected in stacks and set aside for further processing.
FLEXIBLE OPERATING MODES
The ATL can be operated in conjunction with the HTW or HTA, or as a standalone machine.
SAFE PROCESS START
After a loaded pallet has been manually or automatically pushed into the pallet storage bay and the door safety circuit has been securely closed, the depalletizing process begins.
AUTOMATIC TRAY STACK REMOVAL
A vertical motion axis equipped with a gripper system positions itself above the pallet stack and removes a specific stack of trays. The stack of cut pieces is transferred to a transversely movable conveyor system.
SENSOR-BASED ALIGNMENT
The stack is precisely positioned using sensor data. The cross-travel transport system then moves the formed stack of blanks to the transfer point and transfers it in a controlled manner to the blank magazine of the downstream machine.
